A leading manufacturer specializing in high-density multilayer printed circuit boards and specialty boards. With certifications including UL, ISO9001:2015, ISO14001:2015, CQC, IATF16949:2016, and "National Military Standard," we provide top-quality products and services. Our extensive product range includes multilayer boards, impedance boards, high-frequency boards, high TG thick copper foil boards, 5G high-speed boards, buried blind via boards, aluminum-based boards, hybrid dielectric boards, HDI, rigid-flex boards, specialty boards, and customized solutions.
Driven by technological innovation, our products are widely used in industries such as communication equipment, industrial control, automotive electronics, energy and power, medical devices, IoT, research institutions, aerospace, and defense. With over 19 years of experience, we have served over 1,000 technology innovation-oriented enterprises with rapid prototyping and mass production services. We are committed to delivering cutting-edge solutions and exceeding customer expectations in the dynamic electronics industry.
| Specification Item |
Details |
| Model |

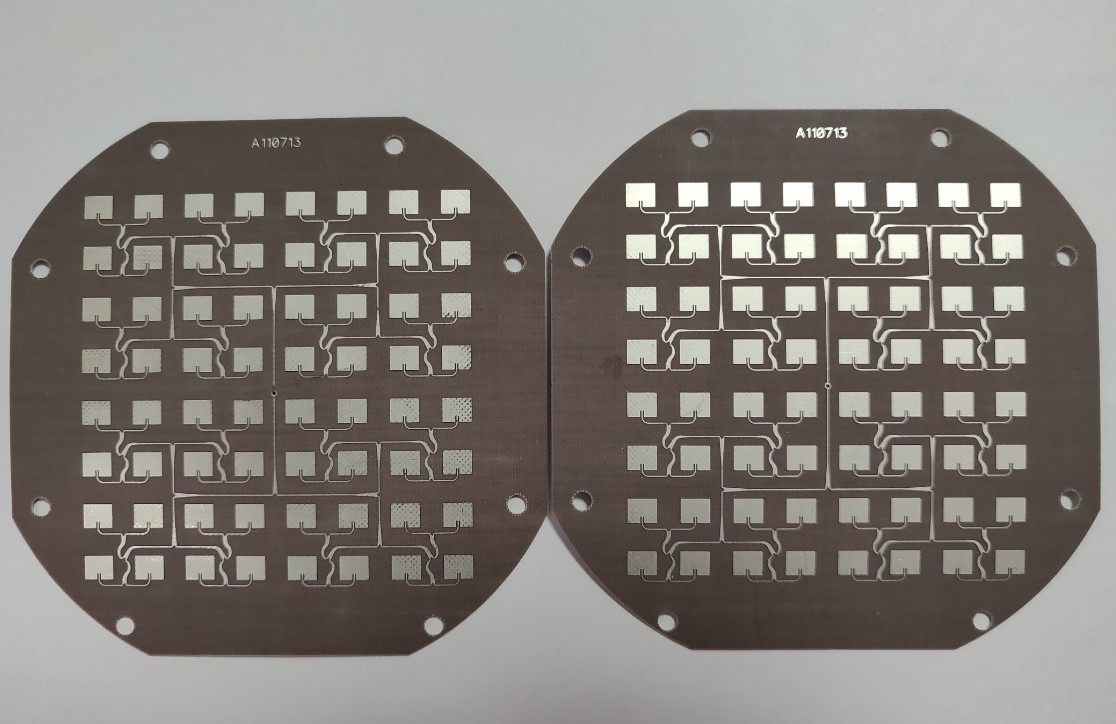

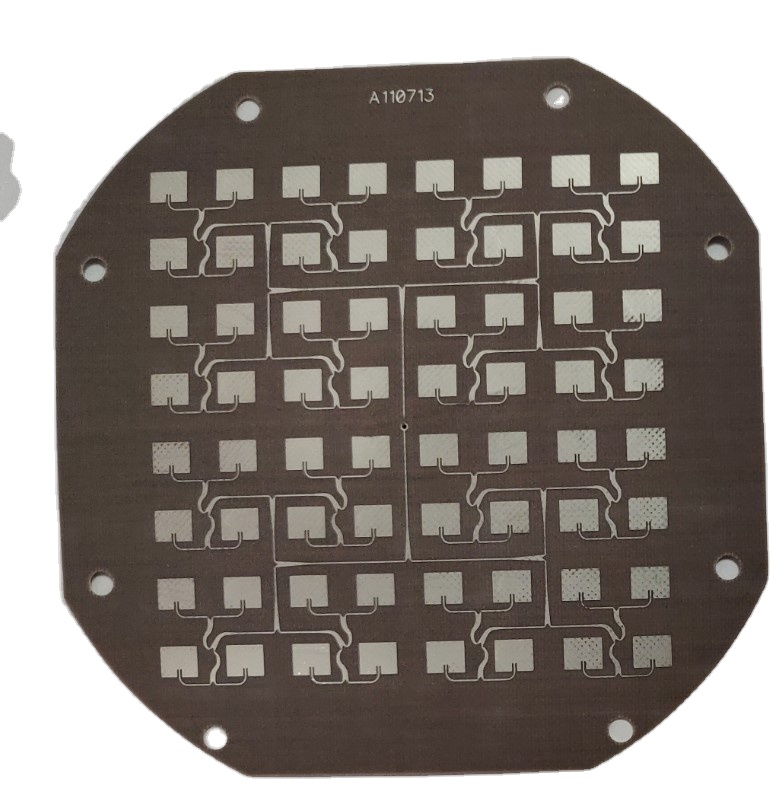

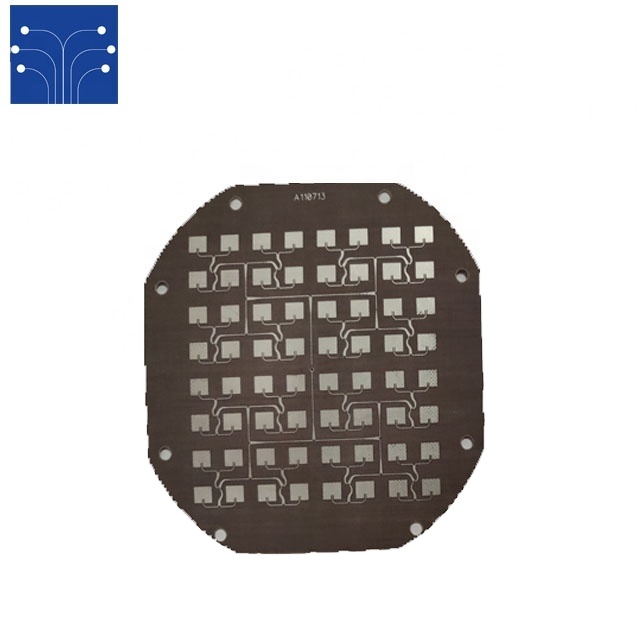

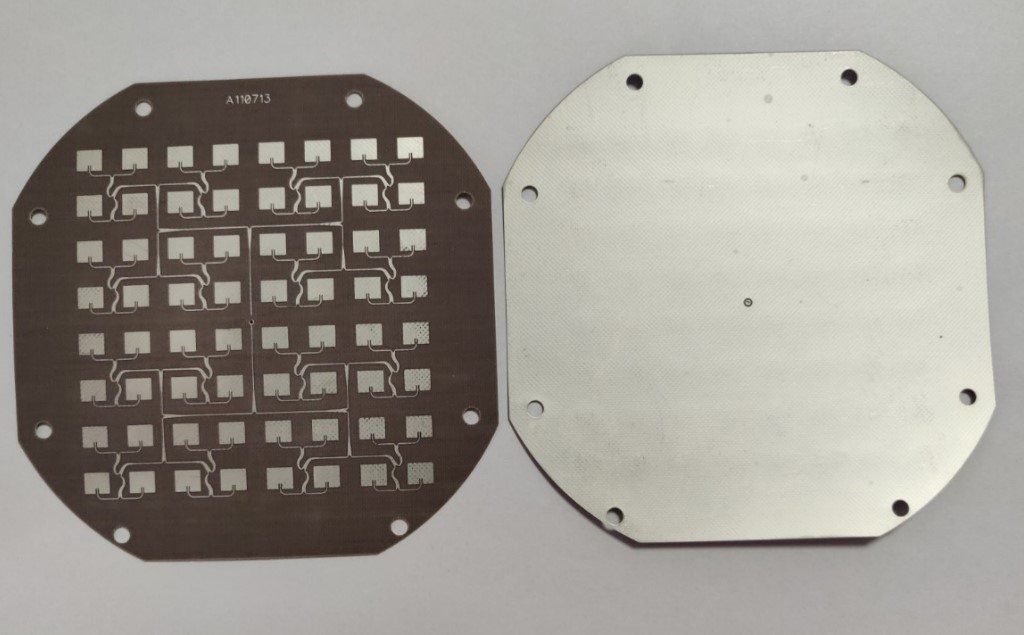

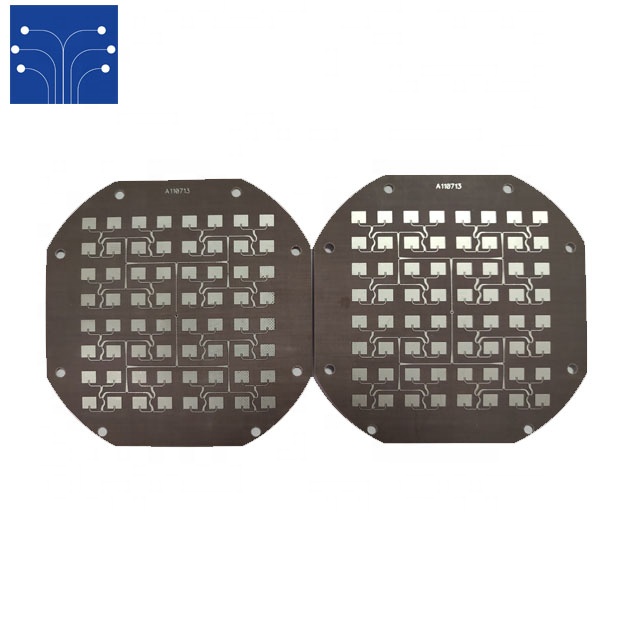

Aluminum substrate |
| Solder mask coverage |
Resin plug hole |
| Outer copper thickness |
0.5oz |
| Forming method |
Mold Forming |
3
Production Line and Equipment
4
Manufacturing Technique
Rigid PCB Manufacturing Capability
| Category |
Sample Processing |
Volume Production |
| Layer count |
1-68L |
64 Layer |
| Max thickness |
10mm (394mil) |
14mm (551mil) |
| Min line width/space (Inner) |
2.2mil/2.2mil |
2.0mil/2.0mil |
| Min line width/space (Outer) |
2.5/2.5mil |
2.2/2.2mil |
| Max copper |
6Oz |
30Oz |
| Mechanical drilling |
≥0.15mm(6mil) |
≥0.1mm(4mil) |
| Laser drilling |
0.1mm(4mil) |
0.050mm(2mil) |
| Max Unit Size |
850mmX570mm |
1000mmX600mm |
| Aspect ratio |
20:1 / 25:1 |
28:1 / 35:1 |
Advanced Material Options
- Lead-free/Halogen-free: EM827, 370HR, S1000-2, IT180A, EM825, IT158, S1000 / S1155, R1566W, EM285, TU862HF
- High-speed PCB: Megtron6, Megtron4, Megtron7, TU872SLK, FR408HR, N4000-13 Series, MW4000, MW2000, TU933
- High-frequency PCB: Ro3003, Ro3006, Ro4350B, Ro4360G2, Ro4835, CLTE, Genclad, RF35, FastRise27
- Specialty: Polyimide, Tk, LCP, BT, C-ply, Fradflex, Omega, ZBC2000
Surface Finished & Special Tech
Surface Finish: HAL, HAL-LF, ENIG, IMMERSION TIN, OSP, IMMERSION SILVER, GOLD FINGER, Hard Gold/Soft Gold Plating.
Special Technology: Blind & buried holes, Via in pad, Semi-plating holes, Counterbore, Step mounting holes, Mixed RF PCB, Busbar PCB.
- Consciousness of making each product a high-quality product by strictly following the quality management system.
- Based on ISO 9001, ISO 14001, IATF16949, Rosh, Reach, UL, CQC quality management systems.
- Method of involving all staff in the entire process control.
- Objective and confidence of ensuring 100% quality.
- Shipping acceptance criteria: Customer requirements, IPC standards.
- Assisting customers in developing quality standards and improving product performance.
6
Laboratory Capabilities
Shipping Standards: We ship PCB orders with the following options:
- Air ship (UPS, DHL, TNT, CTS and FEDEX)
- Railway ship
- Seaborne
- Customer Designated Shipping Method
Lead Time Schedule
| Layer |
Sample Shortest |
Sample Standard |
Mass Production |
| 2 layer | 24 h | 3 days | 6-7 days |
| 4 layer | 36 h | 5 days | 8-10 days |
| 6 layer | 48 h | 5 days | 8-12 days |
| 8 layer | 72 h | 5 days | 9-12 days |
| 10 layer | 4 days | 7 days | 14 days |
| 12 layer | 4 days | 7 days | 16 days |
| 14 layer | 5 days | 8 days | 16 days |
| 16 layer | 5 days | 9 days | 18 days |
| 18 layer | 7 days | 10 days | 18 days |
| 20+ layer | To be negotiated |
Professional Engineering Team
24h technical support; 24h gerber files handling; Complete EQ within 4-8 hours; Support 400 new project engineering reviews. Accepted formats: RS-274-X, RS-274-D, CAD, DXP, Protel 99 SE, PADS, GC-CAM.
Professional Manufacturing Team
All processes running 24 hours; Monthly production of more than 10K high-mix part numbers; More than 100 QTA orders every day; One-step service from prototype to mass production.
Efficient Order Operation Center
24 hours quick response; 4 hours quick response for quotation.
?
Frequently Asked Questions
Q1: What is the maximum number of layers you can manufacture?
A1: We provide sample processing for up to 68 layers and volume production for up to 64 layers.
Q2: What are your standard lead times for PCB samples?
A2: For a standard 2-layer sample, the shortest lead time is 24 hours. For 4-6 layers, it ranges from 36 to 48 hours.
Q3: Which specialty materials do you support?
A3: We support a wide range of materials including high-speed (Megtron, Rogers), high-frequency (Ro4350B, Ro3003), and specialty options like Polyimide, LCP, and BT.
Q4: What surface finishes are available for your PCBs?
A4: We offer HAL, HAL-LF, ENIG, Immersion Tin, OSP, Immersion Silver, and Gold Finger plating (Hard/Soft Gold).
Q5: Do you support rapid prototyping and small batch orders?
A5: Yes, we specialize in high-mix, low-volume production and process over 100 QTA (Quick Turnaround) orders daily.
Q6: What file formats are accepted for engineering review?
A6: We accept RS-274-X, RS-274-D, CAD, DXP, Protel 99 SE, PADS, and GC-CAM formats.
